BonoboControl

BonoboControl — An implementation of the control interface for GtkWidgets

Synopsis




struct      BonoboControl;
struct      BonoboControlPrivate;
struct      BonoboControlClass;
BonoboControl* bonobo_control_new           (GtkWidget *widget);
GtkWidget*  bonobo_control_get_widget       (BonoboControl *control);
void        bonobo_control_set_automerge    (BonoboControl *control,
                                             gboolean automerge);
gboolean    bonobo_control_get_automerge    (BonoboControl *control);
void        bonobo_control_set_property     (BonoboControl *control,
                                             CORBA_Environment *opt_ev,
                                             const char *first_prop,
                                             ...);
void        bonobo_control_get_property     (BonoboControl *control,
                                             CORBA_Environment *opt_ev,
                                             const char *first_prop,
                                             ...);
void        bonobo_control_set_transient_for
                                            (BonoboControl *control,
                                             GtkWindow *window,
                                             CORBA_Environment *opt_ev);
void        bonobo_control_unset_transient_for
                                            (BonoboControl *control,
                                             GtkWindow *window,
                                             CORBA_Environment *opt_ev);
BonoboControl* bonobo_control_construct     (BonoboControl *control,
                                             GtkWidget *widget);
BonoboUIComponent* bonobo_control_get_ui_component
                                            (BonoboControl *control);
void        bonobo_control_set_ui_component (BonoboControl *control,
                                             BonoboUIComponent *component);
Bonobo_UIContainer bonobo_control_get_remote_ui_container
                                            (BonoboControl *control,
                                             CORBA_Environment *opt_ev);
void        bonobo_control_set_control_frame
                                            (BonoboControl *control,
                                             Bonobo_ControlFrame control_frame,
                                             CORBA_Environment *opt_ev);
Bonobo_ControlFrame bonobo_control_get_control_frame
                                            (BonoboControl *control,
                                             CORBA_Environment *opt_ev);
void        bonobo_control_set_properties   (BonoboControl *control,
                                             Bonobo_PropertyBag pb,
                                             CORBA_Environment *opt_ev);
Bonobo_PropertyBag bonobo_control_get_properties
                                            (BonoboControl *control);
Bonobo_PropertyBag bonobo_control_get_ambient_properties
                                            (BonoboControl *control,
                                             CORBA_Environment *opt_ev);
void        bonobo_control_activate_notify  (BonoboControl *control,
                                             gboolean activated,
                                             CORBA_Environment *opt_ev);
Bonobo_Gdk_WindowId bonobo_control_window_id_from_x11
                                            (guint32 x11_id);
guint32     bonobo_control_x11_from_window_id
                                            (const CORBA_char *id);
#define     bonobo_control_windowid_from_x11(a)
#define     BONOBO_CONTROL_POPUP_BUTTON1
#define     BONOBO_CONTROL_POPUP_BUTTON2
#define     BONOBO_CONTROL_POPUP_BUTTON3
BonoboUIContainer* bonobo_control_get_popup_ui_container
                                            (BonoboControl *control);
BonoboUIComponent* bonobo_control_get_popup_ui_component
                                            (BonoboControl *control);
void        bonobo_control_set_popup_ui_container
                                            (BonoboControl *control,
                                             BonoboUIContainer *ui_container);
gboolean    bonobo_control_do_popup         (BonoboControl *control,
                                             guint button,
                                             guint32 activate_time);
gboolean    bonobo_control_do_popup_full    (BonoboControl *control,
                                             GtkWidget *parent_menu_shell,
                                             GtkWidget *parent_menu_item,
                                             GtkMenuPositionFunc func,
                                             gpointer data,
                                             guint button,
                                             guint32 activate_time);
void        (*BonoboControlLifeCallback)    (void);
void        bonobo_control_life_set_purge   (long                      ms);
void        bonobo_control_life_set_callback
                                            (BonoboControlLifeCallback all_dead_callback);
void        bonobo_control_life_instrument  (BonoboControl *control);
int         bonobo_control_life_get_count   (void);

Object Hierarchy


  GObject
   +----BonoboObject
         +----BonoboControl

Signal Prototypes


"activate"  void        user_function      (BonoboControl *bonobocontrol,
                                            gboolean arg1,
                                            gpointer user_data);
"disconnected"
            void        user_function      (BonoboControl *bonobocontrol,
                                            gpointer user_data);
"plug-created"
            void        user_function      (BonoboControl *bonobocontrol,
                                            gpointer user_data);
"set-frame" void        user_function      (BonoboControl *bonobocontrol,
                                            gpointer user_data);

Description

The BonoboControl object implements the CORBA interface for handling remote embeddable components. A Control is a light weight, single view, arbitrarily complex 'widget'. Controls typicaly expose much of their functionality through a property bag.

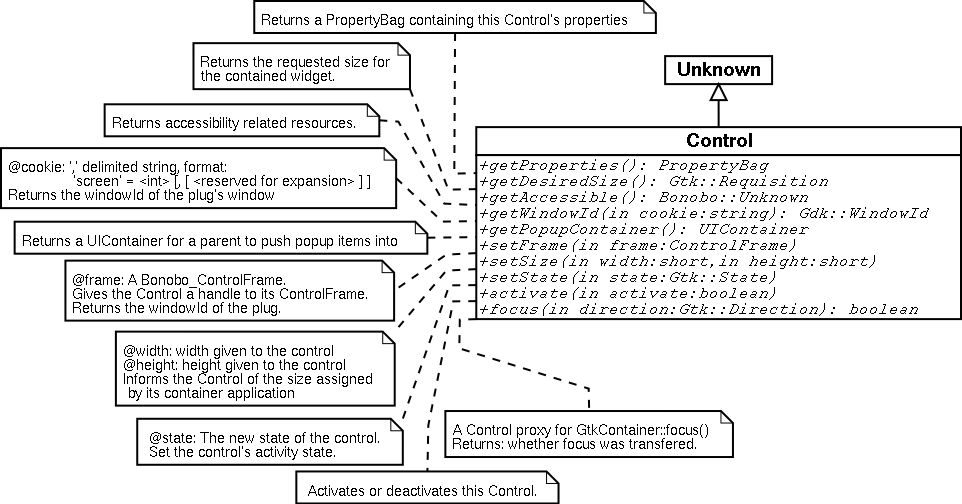

Figure 1. The Bonobo::Control interface

A BonoboControl provides the server ( or component ) side implementation of a Control. The client that uses this control will probably use a BonoboWidget to use the control in their program.

If you want to expose your widget as a control it is very simple

Example 1. CORBA-ifying your GtkWidget

BonoboControl *control;
GtkWidget     *widget;
Bonobo_Unknown corba_object;

widget = make_my_widget();
gtk_widget_show (widget);

control = bonobo_control_new (widget);
corba_object = BONOBO_OBJREF (control);

The corba_object can then be passed off down the wire to anyone and the control popped into a BonoboWidget or BonoboControlFrame at the other end. Here is an even less useful example

Example 2. A pretty useless Control

GtkWidget *widget;

widget = gtk_button_new_with_label ("My Control");
gtk_widget_show (widget);

return bonobo_control_new (widget);

If you learn only one thing from this example, it should be that you need to do a gtk_widget_show on your control. It is not sufficient to do a gtk_widget_show_all on the top level of the client side, since this will not ( and should not ) propagate over to the Control.

One final thing worth thinking about is activation. When a control is embedded inside a BonoboControlFrame, it is initialy inactive. In order for the control to recieve interactive input it is neccessary to use bonobo_control_frame_activate. This signals to the control that it is activated, at which point the Control should merge any UI elements it has with the associated BonoboUIComponent. This needs to be done every time the control is activated.

Details

struct BonoboControl

struct BonoboControl;

struct BonoboControlPrivate

struct BonoboControlPrivate;

struct BonoboControlClass

struct BonoboControlClass {

	BonoboObjectClass      parent_class;

	POA_Bonobo_Control__epv epv;

	gpointer dummy[2];

	/* Signals. */
	void (*plug_created)   (BonoboControl *control);
	void (*disconnected)   (BonoboControl *control);
	void (*set_frame)      (BonoboControl *control);
	void (*activate)       (BonoboControl *control, gboolean state);
};

bonobo_control_new ()

BonoboControl* bonobo_control_new           (GtkWidget *widget);

This function creates a new BonoboControl object for widget.

`widget` :	a GTK widget that contains the control and will be passed to the container process.
Returns :	a BonoboControl object that implements the Bonobo::Control CORBA service that will transfer the `widget` to the container process.

bonobo_control_get_widget ()

GtkWidget*  bonobo_control_get_widget       (BonoboControl *control);

Returns the GtkWidget associated with a BonoboControl.

`control` :	a BonoboControl
Returns :	the BonoboControl's widget

bonobo_control_set_automerge ()

void        bonobo_control_set_automerge    (BonoboControl *control,
                                             gboolean automerge);

Sets whether or not the control handles menu/toolbar merging automatically. If automerge is on, the control will automatically register its BonoboUIComponent with the remote BonoboUIContainer when it is activated.

`control` :	A BonoboControl.
`automerge` :	Whether or not menus and toolbars should be automatically merged when the control is activated.

bonobo_control_get_automerge ()

gboolean    bonobo_control_get_automerge    (BonoboControl *control);

`control` :	A BonoboControl.
Returns :	Whether or not the control is set to automerge its menus/toolbars. See `bonobo_control_set_automerge()`.

bonobo_control_set_property ()

void        bonobo_control_set_property     (BonoboControl *control,
                                             CORBA_Environment *opt_ev,
                                             const char *first_prop,
                                             ...);

This method takes a NULL terminated list of name, type, value triplicates, and sets the corresponding values on the control's associated property bag.

`control` :	the control with associated property bag
`opt_ev` :	optional corba exception environment
`first_prop` :	the first property's name
`...` :

bonobo_control_get_property ()

void        bonobo_control_get_property     (BonoboControl *control,
                                             CORBA_Environment *opt_ev,
                                             const char *first_prop,
                                             ...);

This method takes a NULL terminated list of name, type, value triplicates, and fetches the corresponding values on the control's associated property bag.

`control` :	the control with associated property bag
`opt_ev` :	optional corba exception environment
`first_prop` :	the first property's name
`...` :

bonobo_control_set_transient_for ()

void        bonobo_control_set_transient_for
                                            (BonoboControl *control,
                                             GtkWindow *window,
                                             CORBA_Environment *opt_ev);

Attempts to make the window transient for the toplevel of any associated controlframe the BonoboControl may have.

`control` :	a control with associated control frame
`window` :	a window upon which to set the transient window.
`opt_ev` :

bonobo_control_unset_transient_for ()

void        bonobo_control_unset_transient_for
                                            (BonoboControl *control,
                                             GtkWindow *window,
                                             CORBA_Environment *opt_ev);

`control` :	a control with associated control frame
`window` :	a window upon which to unset the transient window.
`opt_ev` :

bonobo_control_construct ()

BonoboControl* bonobo_control_construct     (BonoboControl *control,
                                             GtkWidget *widget);

`control` :
`widget` :
Returns :

bonobo_control_get_ui_component ()

BonoboUIComponent* bonobo_control_get_ui_component
                                            (BonoboControl *control);

`control` :	The control
Returns :	the associated UI component

bonobo_control_set_ui_component ()

void        bonobo_control_set_ui_component (BonoboControl *control,
                                             BonoboUIComponent *component);

`control` :
`component` :

bonobo_control_get_remote_ui_container ()

Bonobo_UIContainer bonobo_control_get_remote_ui_container
                                            (BonoboControl *control,
                                             CORBA_Environment *opt_ev);

`control` :	A BonoboControl object which is associated with a remote ControlFrame.
`opt_ev` :	an optional exception environment
Returns :	The Bonobo_UIContainer CORBA server for the remote BonoboControlFrame.

bonobo_control_set_control_frame ()

void        bonobo_control_set_control_frame
                                            (BonoboControl *control,
                                             Bonobo_ControlFrame control_frame,
                                             CORBA_Environment *opt_ev);

`control` :
`control_frame` :
`opt_ev` :

bonobo_control_get_control_frame ()

Bonobo_ControlFrame bonobo_control_get_control_frame
                                            (BonoboControl *control,
                                             CORBA_Environment *opt_ev);

`control` :	A BonoboControl object whose Bonobo_ControlFrame CORBA interface is being retrieved.
`opt_ev` :	an optional exception environment
Returns :	The Bonobo_ControlFrame CORBA object associated with `control`, this is a CORBA_Object_duplicated object. You need to CORBA_Object_release it when you are done with it.

bonobo_control_set_properties ()

void        bonobo_control_set_properties   (BonoboControl *control,
                                             Bonobo_PropertyBag pb,
                                             CORBA_Environment *opt_ev);

Binds pb to control. When a remote object queries control for its property bag, pb will be used in the responses.

`control` :	A BonoboControl object.
`pb` :	A Bonobo_PropertyBag.
`opt_ev` :	An optional exception environment

bonobo_control_get_properties ()

Bonobo_PropertyBag bonobo_control_get_properties
                                            (BonoboControl *control);

`control` :	A BonoboControl whose PropertyBag has already been set.
Returns :	The Bonobo_PropertyBag bound to `control`.

bonobo_control_get_ambient_properties ()

Bonobo_PropertyBag bonobo_control_get_ambient_properties
                                            (BonoboControl *control,
                                             CORBA_Environment *opt_ev);

`control` :	A BonoboControl which is bound to a remote BonoboControlFrame.
`opt_ev` :	an optional exception environment
Returns :	A Bonobo_PropertyBag bound to the bag of ambient properties associated with this Control's ControlFrame.

bonobo_control_activate_notify ()

void        bonobo_control_activate_notify  (BonoboControl *control,
                                             gboolean activated,
                                             CORBA_Environment *opt_ev);

Notifies the remote ControlFrame which is associated with control that control has been activated/deactivated.

`control` :	A BonoboControl object which is bound to a remote ControlFrame.
`activated` :	Whether or not `control` has been activated.
`opt_ev` :	An optional exception environment

bonobo_control_window_id_from_x11 ()

Bonobo_Gdk_WindowId bonobo_control_window_id_from_x11
                                            (guint32 x11_id);

This mangles the X11 name into the ':' delimited string format "X-id: ..."

`x11_id` :	the x11 window id.
Returns :	the string; free after use.

bonobo_control_x11_from_window_id ()

guint32     bonobo_control_x11_from_window_id
                                            (const CORBA_char *id);

De-mangle a window id string, fields are separated by ':' character, currently only the first field is used.

`id` :	CORBA_char *
Returns :	the X11 window id.

bonobo_control_windowid_from_x11()

#define     bonobo_control_windowid_from_x11(a)

`a` :
Returns :

BONOBO_CONTROL_POPUP_BUTTON1

#define                     BONOBO_CONTROL_POPUP_BUTTON1           "/popups/button1"

BONOBO_CONTROL_POPUP_BUTTON2

#define                     BONOBO_CONTROL_POPUP_BUTTON2           "/popups/button2"

BONOBO_CONTROL_POPUP_BUTTON3

#define                     BONOBO_CONTROL_POPUP_BUTTON3           "/popups/button3"

bonobo_control_get_popup_ui_container ()

BonoboUIContainer* bonobo_control_get_popup_ui_container
                                            (BonoboControl *control);

`control` :
Returns :

bonobo_control_get_popup_ui_component ()

BonoboUIComponent* bonobo_control_get_popup_ui_component
                                            (BonoboControl *control);

`control` :
Returns :

bonobo_control_set_popup_ui_container ()

void        bonobo_control_set_popup_ui_container
                                            (BonoboControl *control,
                                             BonoboUIContainer *ui_container);

`control` :
`ui_container` :

bonobo_control_do_popup ()

gboolean    bonobo_control_do_popup         (BonoboControl *control,
                                             guint button,
                                             guint32 activate_time);

`control` :
`button` :
`activate_time` :
Returns :

bonobo_control_do_popup_full ()

gboolean    bonobo_control_do_popup_full    (BonoboControl *control,
                                             GtkWidget *parent_menu_shell,
                                             GtkWidget *parent_menu_item,
                                             GtkMenuPositionFunc func,
                                             gpointer data,
                                             guint button,
                                             guint32 activate_time);

`control` :
`parent_menu_shell` :
`parent_menu_item` :
`func` :
`data` :
`button` :
`activate_time` :
Returns :

BonoboControlLifeCallback ()

void        (*BonoboControlLifeCallback)    (void);

bonobo_control_life_set_purge ()

void        bonobo_control_life_set_purge   (long                      ms);

Set time we're prepared to wait without a ControlFrame before terminating the Control. This can happen if the panel activates us but crashes before the set_frame.

Param1 :

bonobo_control_life_set_callback ()

void        bonobo_control_life_set_callback
                                            (BonoboControlLifeCallback all_dead_callback);

See bonobo_control_life_instrument

all_dead_callback : method to call at idle when no controls remain

bonobo_control_life_instrument ()

void        bonobo_control_life_instrument  (BonoboControl *control);

Request that control is lifecycle managed by this code; when it (and all other registerees are dead, the all_dead_callback set by bonobo_control_life_set_callback will be called at idle.

control : control to manage.

bonobo_control_life_get_count ()

int         bonobo_control_life_get_count   (void);

calculates the number of live controls under management.

Returns :

the number of live controls.

Signals

The "activate" signal

void        user_function                  (BonoboControl *bonobocontrol,
                                            gboolean arg1,
                                            gpointer user_data);

`bonobocontrol` :	the object which received the signal.
`arg1` :
`user_data` :	user data set when the signal handler was connected.

The "disconnected" signal

void        user_function                  (BonoboControl *bonobocontrol,
                                            gpointer user_data);

`bonobocontrol` :	the object which received the signal.
`user_data` :	user data set when the signal handler was connected.

The "plug-created" signal

void        user_function                  (BonoboControl *bonobocontrol,
                                            gpointer user_data);

`bonobocontrol` :	the object which received the signal.
`user_data` :	user data set when the signal handler was connected.

The "set-frame" signal

void        user_function                  (BonoboControl *bonobocontrol,
                                            gpointer user_data);

`bonobocontrol` :	the object which received the signal.
`user_data` :	user data set when the signal handler was connected.
