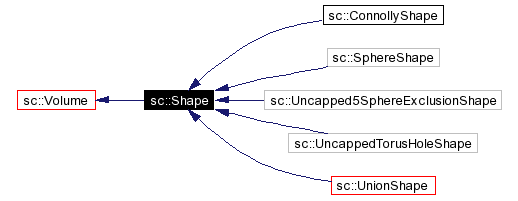

sc::Shape Class Reference A Shape is a Volume represents an 3D solid. More... #include <shape.h> Inheritance diagram for sc::Shape: [legend]Collaboration diagram for sc::Shape: [legend]List of all members. Public Methods   Shape ()   Shape (const Ref< KeyVal > &keyval) virtual double  distance_to_surface (const SCVector3 &r, SCVector3 *grad=0) const=0 virtual int  is_outside (const SCVector3 &r) const virtual  ~Shape () void  compute ()   Recompute at least the results that have compute true and are not already computed. More... void  interpolate (const SCVector3 &p1, const SCVector3 &p2, double val, SCVector3 &result) int  value_implemented () const   Information about the availability of values, gradients, and hessians. Detailed Description A Shape is a Volume represents an 3D solid. The value of the Shape at each point in space is the distance to the surface. The distance is negative if the point is inside the solid. For Shape specializations that cannot compute the distance to the surface, the value will be 1.0 outside and -1.0 inside the solid. Member Function Documentation void sc::Shape::compute (    )  [virtual]   Recompute at least the results that have compute true and are not already computed. This should only be called by Result's members. Implements sc::Volume. The documentation for this class was generated from the following file: shape.h
